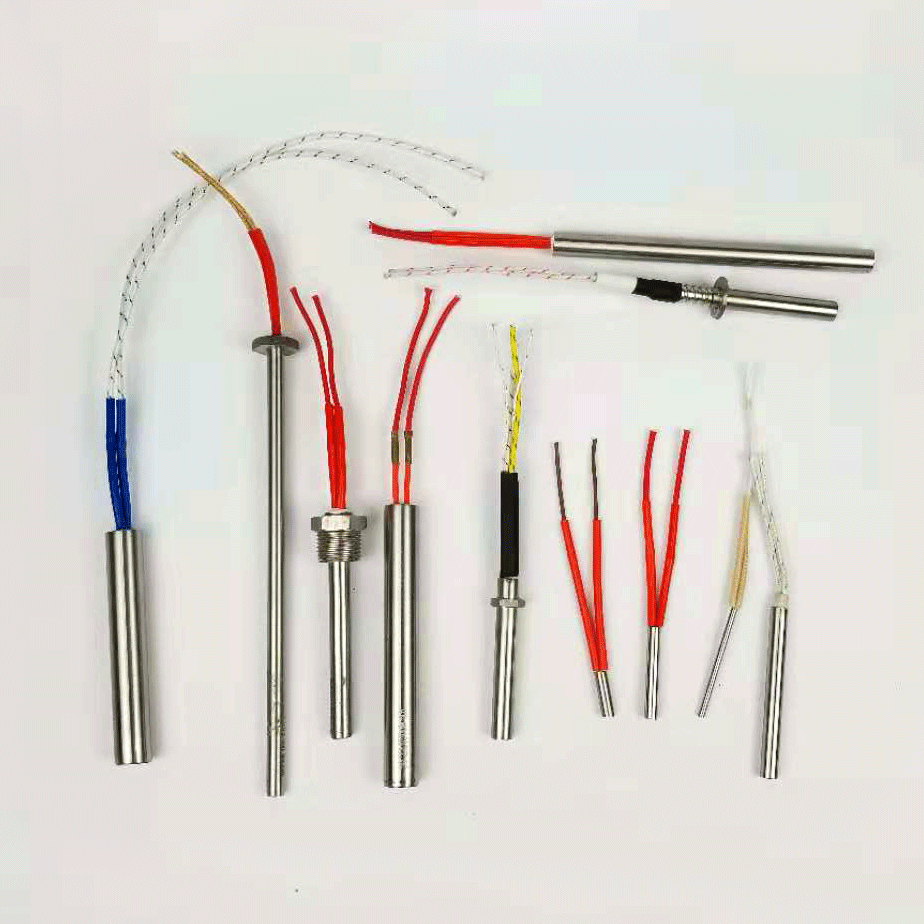

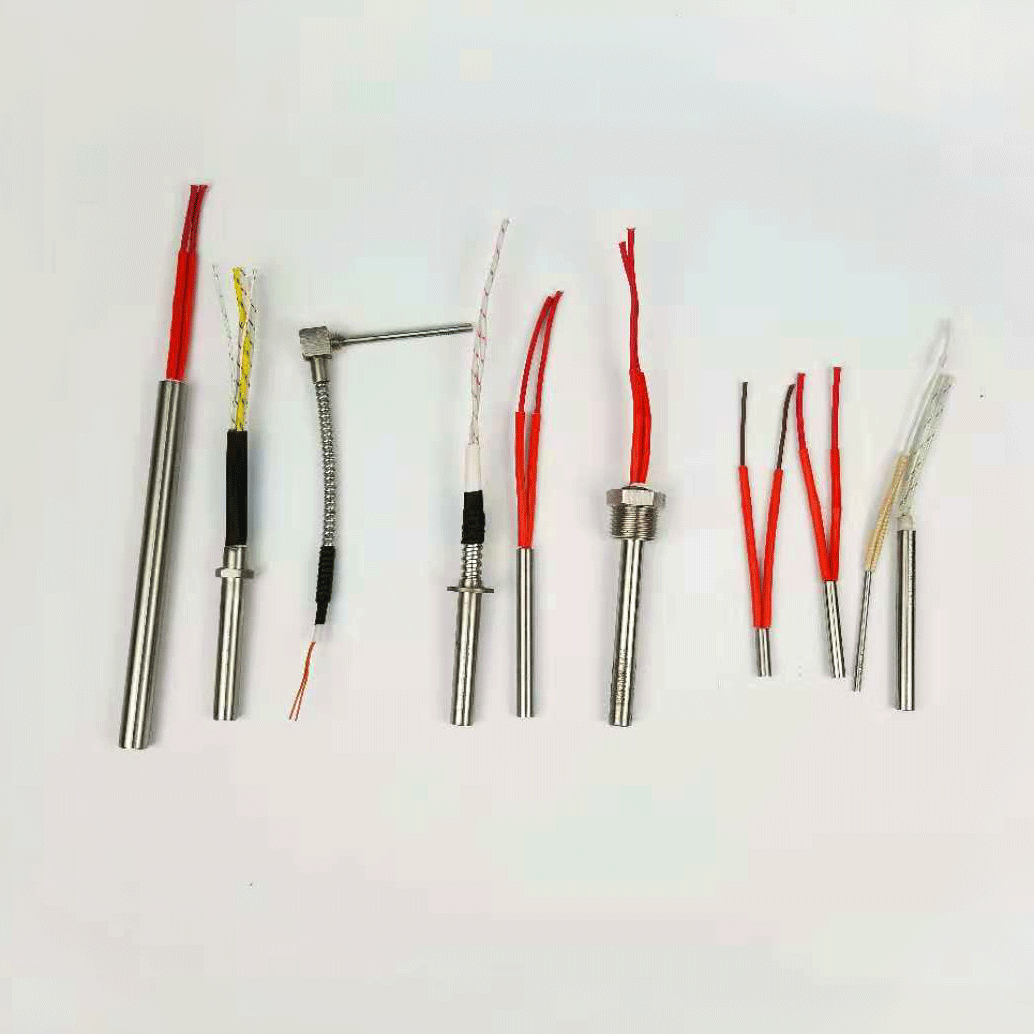

Rod cartridge Heater

6.35mm To 23mm Standard Cartridge Heaters Lilin Cartridge Heaters

Product Description

Heating of Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.

We manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.

Recommended for temperatures up to 750°C

All Cartridge Heaters are available with a built in Thermocouple Type J or K

Diameter (Metric) [mm]: 3; 4; 5; 6; 6.5; 8.0; 10; 12; 12.5; 14; 16; 18; 20;22;

(Non-standard can be customized)

Diameter (Inch) ["]: 1/8; 1/4; 3/8; 1/2; 5/8; 3/4 (non-standard can be customized)

Jacket Material: A stainless steel 304 B. 310S C.NCF800.

The maximum temperature of the heating element jacket: 750 ℃

Resistive material: NiCr8020

High voltage stability (temperature) Rated voltage ≤24V -500V-DC> 24V 1500V-AC

Insulation resistance (500 [V-DC] unheated): ≥50MΩ

The maximum leakage current (253 [V-AC] unheated): ≤0.5mA

Length error: ± 1.5mm

Wattage Tolerance

+5% - 10% (closer tolerances are available upon special request)

Specification Requirements for Ordering

Input voltage: 12V-440V (non-standard can be customized)

Terminal unheated length: <3mm-20mm

Non-terminal unheated length: <3mm-20mm

Connecting wires::

a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)

b. Crimp Teflon line (temperature 250 degrees)

c. Crimp silicon insulated wire (temperature 200 degrees)

d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)

Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.

When ordering Cartridge Heaters, please specify the following information :-

1.Type of Cartridge Heater ( please refer to Termination Options ).

2.Ø of Cartridge Heater.

3.Overall length for a straight Cartridge Heaters.

4.Wattage & Voltage

5.Lead type ( glass fibre / PTFE ) & lead length.

Element component:

1. China and Europe High-grade nickel chromium resistance wire,

2.Japan and USA  MgO core,

3. Seamless Stainless steel tube

4 Built in cable, or swaged in

5 Special sizes, wattages, and materials are available upon request;

6 Custom-designed to meet your specifications.

7 Pin leads are available
